Grade 80 Chain For Sale, Chain Specs & Dimensions

Engineered from specialized USA made alloy steel.

Peerless Chain manufactures Grade 80 Chain used in overhead lifting applications. 80 Chain has excellent energy absorption and is manufactured using special analysis alloy steel. G80 alloy chain is rugged, versatile, high-strength, low-weight chain. Quenched and tempered before proof testing, Grade 80 chain specs & dimensions have tensile strength twice of ordinary steel chain.

Peerless Grade 80 chain meets the latest guidelines of the National Association of Chain Manufacturers (NACM) and ASTM A391/A391M. This is in line with the higher 4-to-1 design factor required by the International Standards Organization (ISO). For fast identification, Peerless Grade 80 chain is embossed USA and stamped P8. For quality control purposes, Peerless chain is date coded for easy traceability.

All heavy duty 80 Grade lifting chain with the 'PEERLESS OVERHEAD LIFTING APPROVED' symbol meets or exceeds the overhead lifting industry requirements.

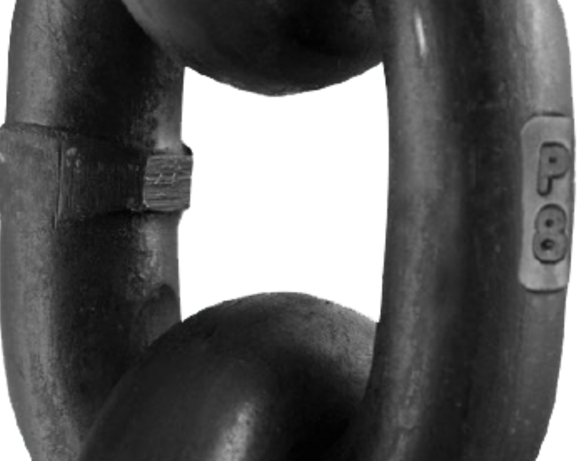

Grade 80 chain is stamped with P8 for fast identification and date coated for traceability purposes.

Click on a product to view details or select multiple products to compare
Restore to default product models sorting
Product Package Type Trade Size (in.) Trade Size mm Wire Dia. (in) Inside Dim. Length (Nominal) (in.) Inside Width (Nominal) Ft/Drum Net Weight (Lbs.) Working Load Limit (Lbs.) Working Load Limit (kg)
5050223 Full Drum 9/32 7 0.279 0.870 0.420 800 610 3500 1588
5050323 Full Drum 5/16 8 0.311 1.010 0.490 500 463 4500 2041
5050423 Full Drum 3/8 10 0.394 1.230 0.580 500 737 7100 3221
5050623 Full Drum 1/2 13 0.516 1.570 0.750 300 765 12000 5443
5050823 Full Drum 5/8 16 0.625 1.960 0.900 200 725 18100 8210
5050923 Full Drum 3/4 20 0.781 2.420 1.140 100 575 28300 12837
5051023 Full Drum 7/8 22 0.906 2.660 1.260 100 788 34200 15513
5051123 Full Drum 1 26 1.031 2.890 1.420 50 549 47700 21636
5051223 Full Drum 1-1/4 32 1.260 3.780 1.640 66 1080 72300 32795
5051323 Full Drum 1-1/2 38 1.496 4.490 1.930 50 1080 100000 45359
5051423 Wooden Box 1-3/4 45 1.771 5.315 2.303 98 1032 131250 59534
5051523 Wooden Box 2 50 1.969 5.905 2.559 80 3011 175000 79379
5050224 Half Drum 9/32 7 0.279 0.870 0.420 400 305 3500 1588
5050324 Half Drum 5/16 8 0.311 1.010 0.490 250 232 4500 2041
5050424 Half Drum 3/8 10 0.394 1.230 0.580 250 369 7100 3221
5050624 Half Drum 1/2 13 0.516 1.570 0.750 150 383 12000 5443
GRADE
  • 80
FINISH
  • Black Thermadep
STANDARDS
  • Meets or exceeds OSHA, Government, NACM, and ASTM specification requirements
HEAT TREATMENT
  • Quenched and tempered before proof testing
ORIGIN
  • Made in USA
APPLICATION
  • Overhead Lifting
MATERIAL
  • Special analysis alloy steel
