Ratchet Loadbinders
Ratchet Loadbinders
Meets all DOT/CVSA/CCMTA requirements. Special hook construction supports the load of the chain and will not bind. Loadbinders are heat treated and proof tested with forged heat treated hooks. The Working Load Limit is permanently marked on handle. All loadbinders feature special links with controlled flash welds and are painted with yellow, powdercoat enamel.

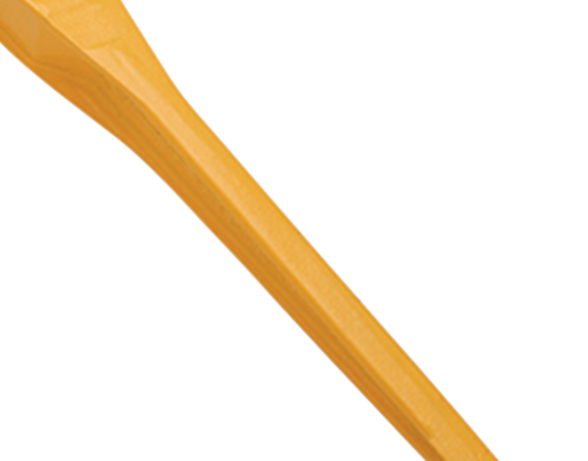

High Visibility Yellow Powder Coat Paint
Yellow powder coat paint to ensure instant visibility and identification in darker environments.

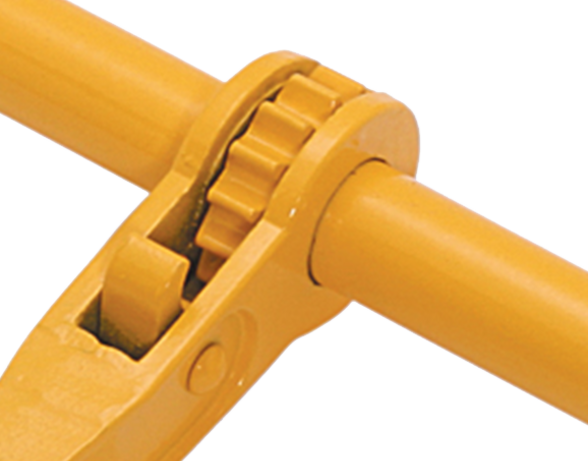

Ratcheting Mechanism
The ratchet mechanism prevents motion in the opposite direction which makes this product safe and easy to use.

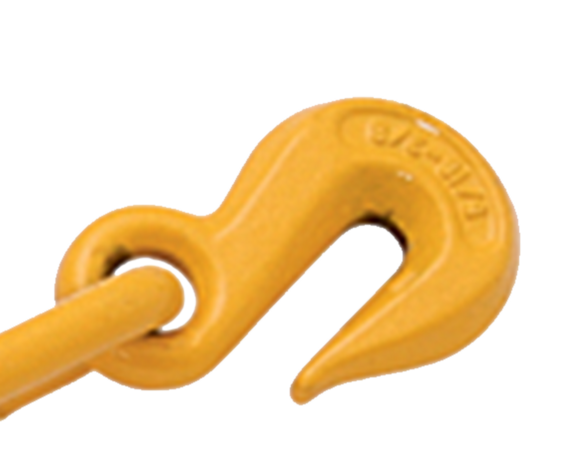

Heat Treated and Proof Tested Forged Hooks
Forging is a process that results in metallurgical recrystalisation and grain refinement after it has gone through the thermal cycle. Some products are not forged and therefore not as strong as if it were a forged product. These heat treated, forged hooks can withstand more tension and wear than most other hooks.

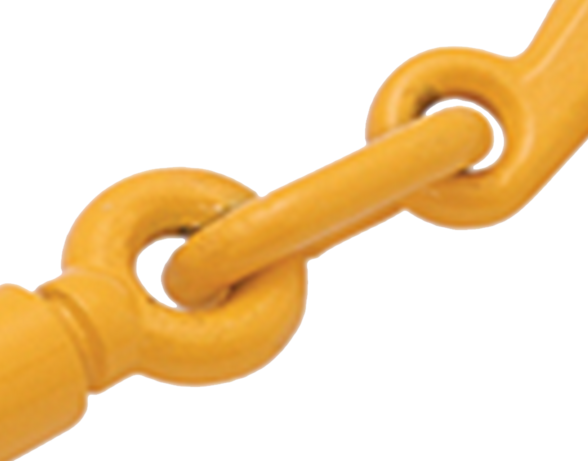

Engineered Links With Controlled Flash Welds
| Product | Chain Size (In.) - Grade 70 | Chain Size (In.) - Grade 43 | Take-Up (In.) | Handle Length (In.) | Quantity Per Pkg. | Lbs. Per Package | Working Load Limit (Lbs.) | Working Load Limit (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| H5123-4052 | 1/4 | 5/16 | 5 | 6.75 | 2 | 9 | 3900 | 1769 | |
| H5123-4152 | 5/16 | 3/8 | 6.5 | 13.92 | 2 | 22 | 5400 | 2449 | |
| H5123-4252 | 3/8 | 1/2 | 6.5 | 13.92 | 2 | 26 | 9200 | 4173 | |
| H5123-4452 | 1/2 | 5/8 | 6.5 | 13.92 | 2 | 32 | 13000 | 5897 |
FINISH
- High-visibility yellow powder coat paint
STANDARDS
- Meet all DOT/CVSA/CCMTA requirements
HOOKS
- Forged, yellow powder coated paint Grab Hooks
APPLICATION
- Cargo Control
TENSIONING MECHANISM
- Ratcheting mechanism
