ECSB

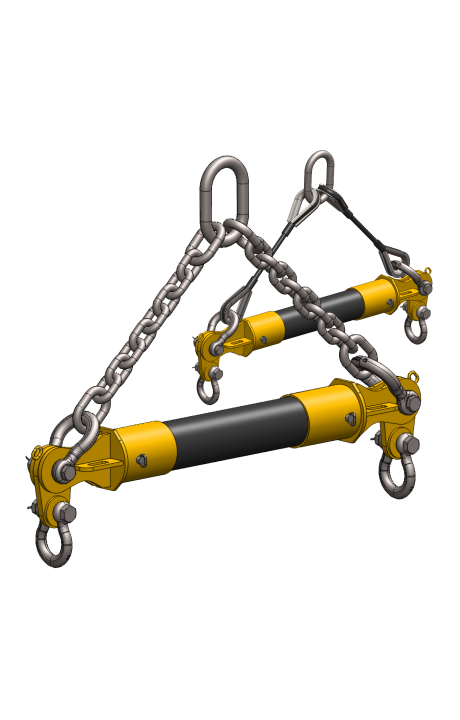

End Cap Spreader Beam

End Cap Spreader Beam

This style of lifter is utilized with upper rigging spread between two lift points that lowers the center of gravity and adds extra stability to the lift. This spreader beam should be utilized where headroom is not limited and comes standard with upper and lower shackles. Standard pivoting lifting lugs provide the flexibility of a 75 degree to 90 degree lower rigging angle.  Can be supplied with optional chain or wire rope top rigging. Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2. 100% of ALL Peerless End Cap Spreader Beams are Proof-Tested to 125% capacity and certificates supplied at no additional charge.

OPTIONS

  • Higher capacities
  • Additional lengths
  • Chain top rigging
  • Wire rope top rigging
Click on a product to view details or select multiple products to compare
Restore to default product models sorting
Product Capacity (Tons) Outside Spread (Ft.) Top Shackle (Tons) Bottom Shackle (Tons) Oblong ML Diameter (in) Oblong ML Opening Width Oblong ML Opening Height End Cap Model Pipe Size Head- room at 45° Head- room at 60° Weight (Lbs.)
ECSB-5-6 5 6 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 60 86 384
ECSB-5-8 5 8 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 72 106 426
ECSB-5-10 5 10 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 84 128 467
ECSB-5-12 5 12 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 96 148 509
ECSB-5-16 5 16 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 120 192 592
ECSB-5-20 5 20 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 144 232 675
ECSB-5-24 5 24 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 168 274 758
ECSB-5-28 5 28 17 13.5 1 3.5 7 EC-5-25 5" SCH 80 192 316 841
ECSB-5-32 5 32 35 25 1 3.5 7 EC-8-50 8" SCH 80 224 364 1753
ECSB-5-36 5 36 35 25 1 3.5 7 EC-8-50 8" SCH 80 248 406 1927
ECSB-5-40 5 40 35 25 1 3.5 7 EC-8-50 8" SCH 80 272 446 2100
ECSB-10-6 10 6 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 60 86 384
ECSB-10-8 10 8 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 72 106 426
ECSB-10-10 10 10 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 84 128 467
ECSB-10-12 10 12 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 96 148 509
ECSB-10-16 10 16 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 120 192 592
ECSB-10-20 10 20 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 144 232 675
ECSB-10-24 10 24 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 168 274 758
ECSB-10-28 10 28 17 13.5 1.25 4.38 8.75 EC-5-25 5" SCH 80 N/A 316 841
ECSB-10-32 10 32 35 25 1.25 4.38 8.75 EC-8-50 8" SCH 80 224 364 1753
ECSB-10-36 10 36 35 25 1.25 4.38 8.75 EC-8-50 8" SCH 80 248 406 1927
ECSB-10-40 10 40 35 25 1.25 4.38 8.75 EC-8-50 8" SCH 80 272 446 2100
ECSB-15-6 15 6 17 13.5 2 5.3 11 EC-5-25 5" SCH 80 60 86 384
ECSB-15-8 15 8 17 13.5 2 5.3 11 EC-5-25 5" SCH 80 72 106 426
ECSB-15-10 15 10 17 13.5 2 5.3 11 EC-5-25 5" SCH 80 84 128 467
ECSB-15-12 15 12 17 13.5 2 5.3 11 EC-5-25 5" SCH 80 96 148 509
ECSB-15-16 15 16 17 13.5 2 5.3 11 EC-5-25 5" SCH 80 120 192 592
ECSB-15-20 15 20 17 13.5 2 5.3 11 EC-5-25 5" SCH 80 N/A 232 675
ECSB-15-24 15 24 17 13.5 2 5.3 11 EC-5-25 5" SCH 80 N/A 274 758
ECSB-15-28 15 28 35 25 2 5.3 11 EC-8-50 8" SCH 80 200 324 1580
ECSB-15-32 15 32 35 25 2 5.3 11 EC-8-50 8" SCH 80 224 364 1753
ECSB-15-36 15 36 35 25 2 5.3 11 EC-8-50 8" SCH 80 248 406 1927
ECSB-15-40 15 40 35 25 2 5.3 11 EC-8-50 8" SCH 80 272 446 2100
ECSB-20-6 20 6 17 13.5 2 6 12 EC-5-25 5" SCH 80 60 86 384
ECSB-20-8 20 8 17 13.5 2 6 12 EC-5-25 5" SCH 80 72 106 426
ECSB-20-10 20 10 17 13.5 2 6 12 EC-5-25 5" SCH 80 84 128 467
ECSB-20-12 20 12 17 13.5 2 6 12 EC-5-25 5" SCH 80 96 148 509
ECSB-20-16 20 16 17 13.5 2 6 12 EC-5-25 5" SCH 80 N/A 192 592
ECSB-20-20 20 20 17 13.5 2 6 12 EC-5-25 5" SCH 80 N/A 232 675
ECSB-20-24 20 24 35 25 2 6 12 EC-8-50 8" SCH 80 176 282 1406
ECSB-20-28 20 28 35 25 2 6 12 EC-8-50 8" SCH 80 200 324 1580
ECSB-20-32 20 32 35 25 2 6 12 EC-8-50 8" SCH 80 224 364 1753
ECSB-20-36 20 36 35 25 2 6 12 EC-8-50 8" SCH 80 N/A 406 1927
ECSB-20-40 20 40 35 25 2 6 12 EC-8-50 8" SCH 80 N/A 446 2100
ECSB-25-6 25 6 17 13.5 2 6 12 EC-5-25 5" SCH 80 60 86 384
ECSB-25-8 25 8 17 13.5 2 6 12 EC-5-25 5" SCH 80 72 106 426
ECSB-25-10 25 10 17 13.5 2 6 12 EC-5-25 5" SCH 80 84 128 467
ECSB-25-12 25 12 17 13.5 2 6 12 EC-5-25 5" SCH 80 96 148 509
ECSB-25-16 25 16 17 13.5 2 6 12 EC-5-25 5" SCH 80 N/A 192 592
ECSB-25-20 25 20 35 25 2 6 12 EC-8-50 8" SCH 80 N/A 232 1232
ECSB-25-24 25 24 35 25 2 6 12 EC-8-50 8" SCH 80 176 282 1406
ECSB-25-28 25 28 35 25 2 6 12 EC-8-50 8" SCH 80 200 324 1580
ECSB-25-32 25 32 35 25 2 6 12 EC-8-50 8" SCH 80 224 364 1753
ECSB-25-36 25 36 35 25 2 6 12 EC-8-50 8" SCH 80 N/A 406 1927
ECSB-25-40 25 40 35 25 2 6 12 EC-8-50 8" SCH 80 N/A 446 2100
ECSB-30-6 30 6 35 25 2 6 12 EC-5-50 5" SCH 80 68 94 450
ECSB-30-8 30 8 35 25 2 6 12 EC-5-50 5" SCH 80 N/A 114 492
ECSB-30-10 30 10 35 25 2 6 12 EC-5-50 5" SCH 80 N/A 136 533
ECSB-30-12 30 12 35 25 2 6 12 EC-5-50 5" SCH 80 N/A 156 575
ECSB-30-16 30 16 35 25 2 6 12 EC-8-50 8" SCH 80 128 200 1059
ECSB-30-20 30 20 35 25 2 6 12 EC-8-50 8" SCH 80 152 240 1232
ECSB-30-24 30 24 35 25 2 6 12 EC-8-50 8" SCH 80 176 282 1406
ECSB-30-28 30 28 35 25 2 6 12 EC-8-50 8" SCH 80 200 324 1580
ECSB-30-32 30 32 35 25 2 6 12 EC-8-50 8" SCH 80 224 364 1753
ECSB-30-36 30 36 35 25 2 6 12 EC-8-50 8" SCH 80 N/A 406 1927
ECSB-30-40 30 40 55 55 2 6 12 EC-12-80 12" SCH 80 278 452 4184
ECSB-40-6 40 6 35 25 2 8 16 EC-5-50 5" SCH 80 N/A 94 450
ECSB-40-8 40 8 35 25 2 8 16 EC-5-50 5" SCH 80 N/A 114 492
ECSB-40-10 40 10 35 25 2 8 16 EC-8-50 8" SCH 80 92 136 798
ECSB-40-12 40 12 35 25 2 8 16 EC-8-50 8" SCH 80 104 156 885
ECSB-40-16 40 16 35 25 2 8 16 EC-8-50 8" SCH 80 128 200 1059
ECSB-40-20 40 20 35 25 2 8 16 EC-8-50 8" SCH 80 152 240 1232
ECSB-40-24 40 24 35 25 2 8 16 EC-8-50 8" SCH 80 176 282 1406
ECSB-40-28 40 28 35 25 2 8 16 EC-8-50 8" SCH 80 N/A 324 1580
ECSB-40-32 40 32 35 25 2 8 16 EC-8-50 8" SCH 80 N/A 364 1753
ECSB-40-36 40 36 55 55 2 8 16 EC-12-80 12" SCH 80 254 412 3830
ECSB-40-40 40 40 55 55 2 8 16 EC-12-80 12" SCH 80 278 452 4184
ECSB-50-6 50 6 35 25 2 8 16 EC-5-50 5" SCH 80 N/A 94 450
ECSB-50-8 50 8 35 25 2 8 16 EC-5-50 5" SCH 80 N/A 114 492
ECSB-50-10 50 10 35 25 2 8 16 EC-8-50 8" SCH 80 92 136 798
ECSB-50-12 50 12 35 25 2 8 16 EC-8-50 8" SCH 80 104 156 885
ECSB-50-16 50 16 35 25 2 8 16 EC-8-50 8" SCH 80 128 200 1059
ECSB-50-20 50 20 35 25 2 8 16 EC-8-50 8" SCH 80 152 240 1232
ECSB-50-24 50 24 35 25 2 8 16 EC-8-50 8" SCH 80 N/A 282 1406
ECSB-50-28 50 28 35 25 2 8 16 EC-8-50 8" SCH 80 N/A 324 1580
ECSB-50-32 50 32 35 25 2 8 16 EC-8-50 8" SCH 80 N/A 364 1753
ECSB-50-36 50 36 55 55 2 8 16 EC-12-80 12" SCH 80 254 412 3830
ECSB-50-40 50 40 55 55 2 8 16 EC-12-80 12" SCH 80 278 452 4184
ECSB-60-8 60 8 55 55 3 8 16 EC-8-80 8" SCH 80 84 120 896
ECSB-60-10 60 10 55 55 3 8 16 EC-8-80 8" SCH 80 96 140 982
ECSB-60-12 60 12 55 55 3 8 16 EC-8-80 8" SCH 80 108 162 1069
ECSB-60-16 60 16 55 55 3 8 16 EC-8-80 8" SCH 80 132 204 1243
ECSB-60-20 60 20 55 55 3 8 16 EC-8-80 8" SCH 80 N/A 246 1416
ECSB-60-24 60 24 55 55 3 8 16 EC-8-80 8" SCH 80 N/A 286 1590
ECSB-60-28 60 28 55 55 3 8 16 EC-8-80 8" SCH 80 N/A 328 1764
ECSB-60-32 60 32 55 55 3 8 16 EC-8-80 8" SCH 80 N/A 370 1937
ECSB-60-36 60 36 55 55 3 8 16 EC-12-80 12" SCH 80 254 412 3830
ECSB-60-40 60 40 55 55 3 8 16 EC-12-80 12" SCH 80 278 452 4184
ECSB-70-8 70 8 55 55 3 9 16 EC-8-80 8" SCH 80 84 120 896
ECSB-70-10 70 10 55 55 3 9 16 EC-8-80 8" SCH 80 96 140 982
ECSB-70-12 70 12 55 55 3 9 16 EC-8-80 8" SCH 80 N/A 162 1069
ECSB-70-16 70 16 55 55 3 9 16 EC-8-80 8" SCH 80 N/A 204 1243
ECSB-70-20 70 20 55 55 3 9 16 EC-12-80 12" SCH 80 156 246 2413
ECSB-70-24 70 24 55 55 3 9 16 EC-12-80 12" SCH 80 180 286 2769
ECSB-70-28 70 28 55 55 3 9 16 EC-12-80 12" SCH 80 204 328 3122
ECSB-70-32 70 32 55 55 3 9 16 EC-12-80 12" SCH 80 230 370 3476
ECSB-70-36 70 36 55 55 3 9 16 EC-12-80 12" SCH 80 254 412 3830
ECSB-70-40 70 40 55 55 3 9 16 EC-12-80 12" SCH 80 278 452 4184
ECSB-80-8 80 8 55 55 3 10 20 EC-8-80 8" SCH 80 84 120 896
ECSB-80-10 80 10 55 55 3 10 20 EC-8-80 8" SCH 80 N/A 140 982
ECSB-80-12 80 12 55 55 3 10 20 EC-8-80 8" SCH 80 N/A 162 1069
ECSB-80-16 80 16 55 55 3 10 20 EC-8-80 8" SCH 80 N/A 204 1243
ECSB-80-20 80 20 55 55 3 10 20 EC-12-80 12" SCH 80 156 246 2413
ECSB-80-24 80 24 55 55 3 10 20 EC-12-80 12" SCH 80 180 286 2768
ECSB-80-28 80 28 55 55 3 10 20 EC-12-80 12" SCH 80 204 328 3122
ECSB-80-32 80 32 55 55 3 10 20 EC-12-80 12" SCH 80 230 370 3476
ECSB-80-36 80 36 55 55 3 10 20 EC-12-80 12" SCH 80 254 412 3830
ECSB-80-40 80 40 55 55 3 10 20 EC-12-80 12" SCH 80 278 452 4184
ECSB-90-8 90 8 85 55 3 10 20 EC-12-110 12" SCH 80 84 120 1519
ECSB-90-10 90 10 85 55 3 10 20 EC-12-110 12" SCH 80 96 140 1696
ECSB-90-12 90 12 85 55 3 10 20 EC-12-110 12" SCH 80 108 162 1873
ECSB-90-16 90 16 85 55 3 10 20 EC-12-110 12" SCH 80 132 204 2227
ECSB-90-20 90 20 85 55 3 10 20 EC-12-110 12" SCH 80 156 246 2581
ECSB-90-24 90 24 85 55 3 10 20 EC-12-110 12" SCH 80 180 286 2936
ECSB-90-28 90 28 85 55 3 10 20 EC-12-110 12" SCH 80 204 328 3290
ECSB-90-32 90 32 85 55 3 10 20 EC-12-110 12" SCH 80 230 370 3644
ECSB-90-36 90 36 85 55 3 10 20 EC-12-110 12" SCH 80 254 412 3998
ECSB-90-40 90 40 85 55 3 10 20 EC-12-110 12" SCH 80 N/A 452 4352
ECSB-100-8 100 8 85 55 4 10 20 EC-12-110 12" SCH 80 84 120 1519
ECSB-100-10 100 10 85 55 4 10 20 EC-12-110 12" SCH 80 96 140 1696
ECSB-100-12 100 12 85 55 4 10 20 EC-12-110 12" SCH 80 108 162 1873
ECSB-100-16 100 16 85 55 4 10 20 EC-12-110 12" SCH 80 132 204 2227
ECSB-100-20 100 20 85 55 4 10 20 EC-12-110 12" SCH 80 156 246 2581
ECSB-100-24 100 24 85 55 4 10 20 EC-12-110 12" SCH 80 180 286 2936
ECSB-100-28 100 28 85 55 4 10 20 EC-12-110 12" SCH 80 204 328 3290
ECSB-100-32 100 32 85 55 4 10 20 EC-12-110 12" SCH 80 230 370 3644
ECSB-100-36 100 36 85 55 4 10 20 EC-12-110 12" SCH 80 N/A 412 3998
ECSB-100-40 100 40 85 55 4 10 20 EC-12-110 12" SCH 80 N/A 452 4352
ECSB-110-8 110 8 85 55 4 10 20 EC-12-110 12" SCH 80 84 120 1519
ECSB-110-10 110 10 85 55 4 10 20 EC-12-110 12" SCH 80 96 140 1696
ECSB-110-12 110 12 85 55 4 10 20 EC-12-110 12" SCH 80 108 162 1873
ECSB-110-16 110 16 85 55 4 10 20 EC-12-110 12" SCH 80 132 204 2227
ECSB-110-20 110 20 85 55 4 10 20 EC-12-110 12" SCH 80 156 246 2581
ECSB-110-24 110 24 85 55 4 10 20 EC-12-110 12" SCH 80 180 286 2936
ECSB-110-28 110 28 85 55 4 10 20 EC-12-110 12" SCH 80 204 328 3290
ECSB-110-32 110 32 85 55 4 10 20 EC-12-110 12" SCH 80 N/A 370 3644
ECSB-110-36 110 36 85 55 4 10 20 EC-12-110 12" SCH 80 N/A 412 3998
ECSB-110-40 110 40 85 55 4 10 20 EC-12-110 12" SCH 80 N/A 452 4352
ECSB-120-8 120 8 85 85 4 10 20 EC-12-130 12" SCH 80 96 130 1539
ECSB-120-10 120 10 85 85 4 10 20 EC-12-130 12" SCH 80 108 152 1716
ECSB-120-12 120 12 85 85 4 10 20 EC-12-130 12" SCH 80 120 172 1893
ECSB-120-16 120 16 85 85 4 10 20 EC-12-130 12" SCH 80 144 216 2247
ECSB-120-20 120 20 85 85 4 10 20 EC-12-130 12" SCH 80 168 256 2601
ECSB-120-24 120 24 85 85 4 10 20 EC-12-130 12" SCH 80 192 298 2956
ECSB-120-28 120 28 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 340 3310
ECSB-120-32 120 32 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 380 3664
ECSB-120-36 120 36 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 422 4018
ECSB-120-40 120 40 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 462 4372
ECSB-130-8 130 8 85 85 4 10 20 EC-12-130 12" SCH 80 96 130 1539
ECSB-130-10 130 10 85 85 4 10 20 EC-12-130 12" SCH 80 108 152 1716
ECSB-130-12 130 12 85 85 4 10 20 EC-12-130 12" SCH 80 120 172 1893
ECSB-130-16 130 16 85 85 4 10 20 EC-12-130 12" SCH 80 144 216 2247
ECSB-130-20 130 20 85 85 4 10 20 EC-12-130 12" SCH 80 168 256 2601
ECSB-130-24 130 24 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 298 2956
ECSB-130-28 130 28 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 340 3310
ECSB-130-32 130 32 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 380 3664
ECSB-130-36 130 36 85 85 4 10 20 EC-12-130 12" SCH 80 N/A 422 4018
OPTIONS
  • Higher capacities
  • Additional lengths
  • Chain top rigging
  • Wire rope top rigging
