Diamond Blue
Diamond Pattern Highway Service - Alloy CAM Truck Singles.
Diamond Blue
Diamond Pattern Highway Service - Alloy CAM Truck Singles.
Diamond Blue cross chains are made from high grade manganese alloy steel. Alloy tire chains wear considerably longer than regular carbon steel chains. This makes them ideal for trucks that use their chains often and/or for extended periods of time. Diamond Blue weigh an average of 25% less than equivalent standard highway chains making them easier to install. The "D" shaped or "square rod" links have more gripping power than round rod chains. Combine that with the diamond pattern design of the cross chains, and they become some of the longest lasting, best gripping, easiest to use chains on the market.
All Diamond Blue truck tire chains include complete installation and removal instructions.
Diamond Blue offers a CAM tightening system that DOES NOT require separate chain tighteners. They do require a CAM tightening tool that is included in the package.
Chain tighteners SHOULD NOT be used. Replacement cross members are available through some retailers.

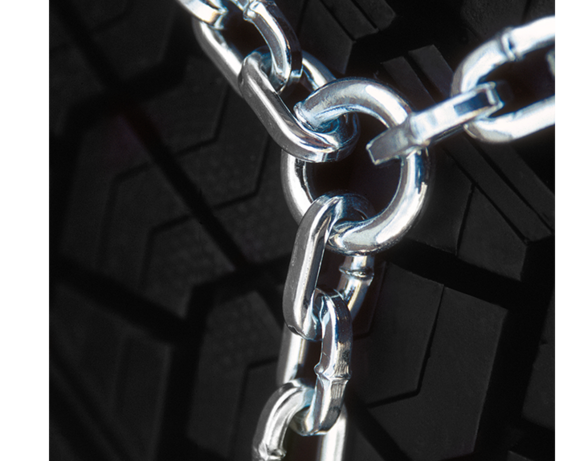

Square Rod links
The “square rod” links have more gripping power than round rod chains

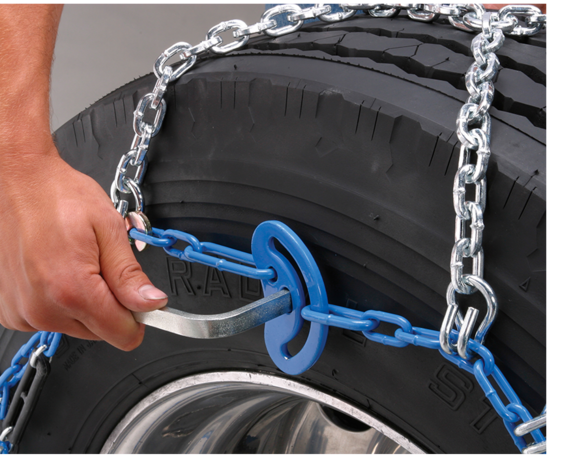

CAM Tightening System
CAM tool (QG20095) is included in each bag of chain

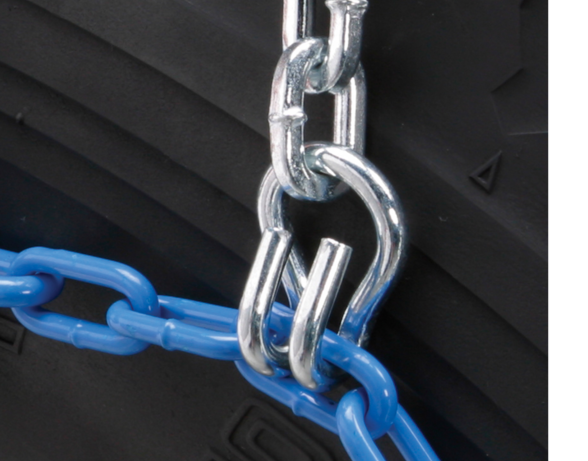

Bell Shaped Cross Chain End Hooks
Bell-style hooks keeps the cross chain stable on the tire and holds the ideal angle of pull on the sidewall chain with minimum strain on the connect point. More chain stability enables better performance.

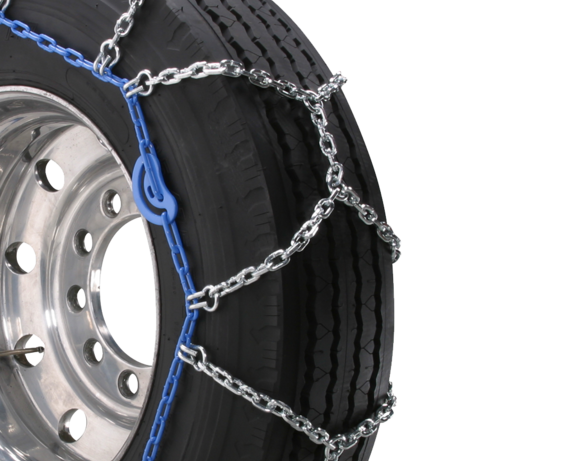

Diamond Pattern Cross Chains
Diamond pattern cross chains provide better lateral traction than ladder style chain.
Product | Tire application | |
---|---|---|
DB2141 Diamond Blue - Alloy CAM Single | Distance, Control, Cornering, Starting, ABS & AWD | |
DB2143 Diamond Blue - Alloy CAM Single | Distance, Control, Cornering, Starting, ABS & AWD | |
DB2145 Diamond Blue - Alloy CAM Single | Distance, Control, Cornering, Starting, ABS & AWD | |
DB2147 Diamond Blue - Alloy CAM Single | Distance, Control, Cornering, Starting, ABS & AWD | |
DB2149 Diamond Blue - Alloy CAM Single | Distance, Control, Cornering, Starting, ABS & AWD | |
DB2151 Diamond Blue - Alloy CAM Single | Distance, Control, Cornering, Starting, ABS & AWD |
Vehicle Type
Construction
- Alloy steel link
Cross Member Pattern
- Diamond
Tensioners Required
- No
Meets Class “S”
- No
Type
- Twist Link
Packaging
- Bag
Has CAM Locking Mechanism
- Yes
